Home / > Product > Connector series > SIMCard Socket / SMC-203

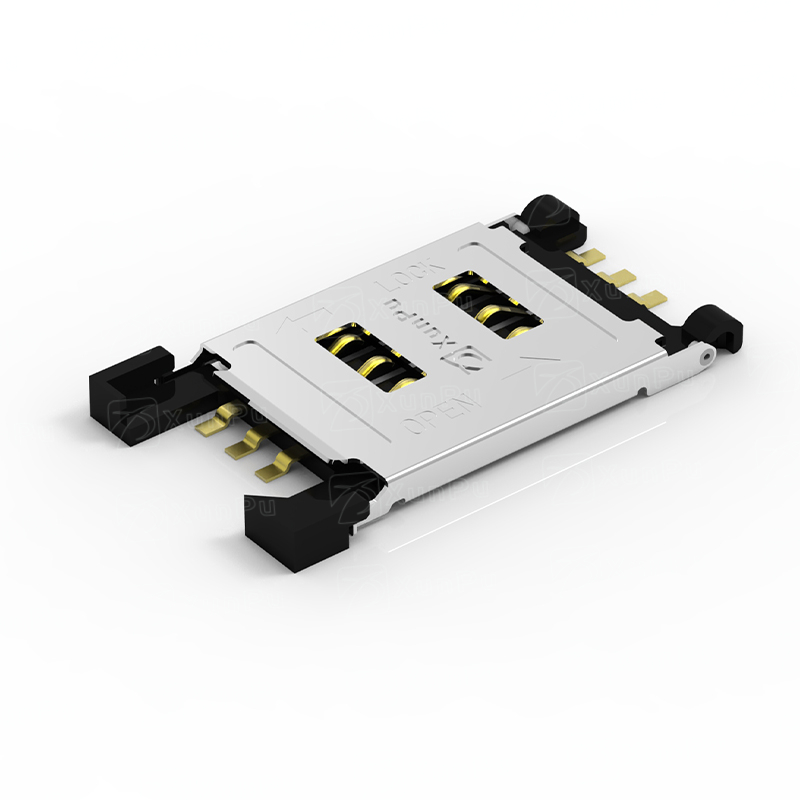

SMC-203

SMC-203
SMC-203

SMC-203

REACH RoHS ELV
Card installation method Self-ejecting
Card insertion detection With detection PIN
Product type MICRO SIM

Basic Parameters

Caliper MICRO SIM
Height Above Board 1.50mm
Card installation method Push Push Self-ejecting
Locating Pin No
Polarization Protection (Foolproof) Foolproof
Anti-Backflow Protection Not collapse-proof
Hot Swap Support
Temperature Resistance 260℃
Packaging SMD

Mechanical Performance

Durability 5000Cycle

Electrical Characteristics

Withstand Voltage 500V AC
Insulation Resistance 1000MΩ Min
Contact Resistance 100 mΩ Max
Rated Current 0.5A
Rated Voltage 50V
Declaration:Product Specifications、Parameters、Lifespan、Operating Temperature、Waterproof Rating Data，Represents XunPu OnlyInternal Test Results，For Detailed Testing Methods，Please Contact XunPuSales Staff。

Product Part Number List

Product Images Part Number Product Description Product information Production Status PINNumber Card insertion detection Shipping Lead Time Product Gross Weight MPQ MOQ Remarks Operation
SMC-203-ARP7 SMC-203-ARP7

View drawings

3DDownload

 		In Production 7PIN With Detection 3-7Day 1.027Gram(g) 1000/Reel No Restriction Contact Customer Service
SMC-203-ARP9 SMC-203-ARP9

View drawings

3DDownload

 		In Production 9PIN With Detection 3-7Day 1.043Gram(g） 1000/Reel No Restriction Contact Customer Service

Related Products

Product Parameter Information

Basic Parameters

CaliperMICRO SIM
Height Above Board1.50mm
Card installation methodPush Push Self-ejecting
Locating PinNo
Polarization Protection (Foolproof)Foolproof
Anti-Backflow ProtectionNot collapse-proof
Hot SwapSupport
Temperature Resistance260℃
PackagingSMD

Mechanical Performance

Durability5000Cycle

Electrical Characteristics

Withstand Voltage500V AC
Insulation Resistance1000MΩ Min
Contact Resistance100 mΩ Max
Rated Current0.5A
Rated Voltage50V
