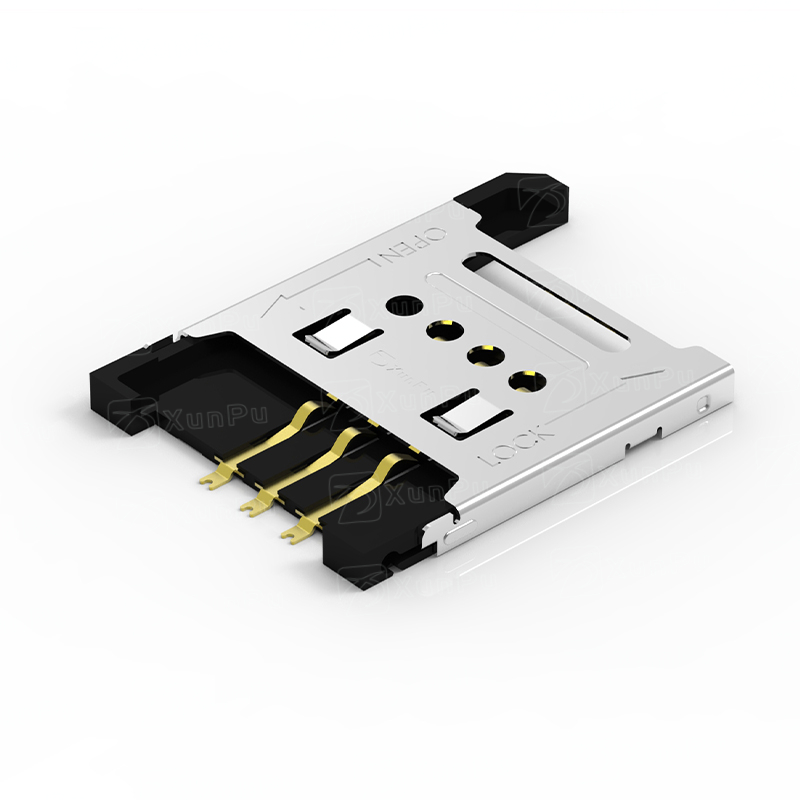

SMC-204

SMC-204

SMC-204

REACH RoHS ELV
Card installation method Plug-in type
Card insertion detection Without detection pin
Product Type MICRO SIM

Basic Parameters

Snap Gauge MICRO SIM
Height Above Board 1.45mm
Card installation method Push Pull Direct plug/unplug
Locating Pin None
Foolproof Foolproof
Anti-Buckling Not Anti-Buckling
Hot Swap Unsupported
Temperature resistance 260℃
Package SMD
Packaging Method Tape and Reel

Mechanical Properties

Durability 5,000Cycle

Electrical Characteristics

Withstand Voltage 500V AC
Insulation Resistance 1000MΩ Min
Contact Resistance 100 mΩ Max
Rated Current 0.5A
Rated Voltage 50V
Declaration:About Product Specifications、Parameter、Life、Operating Temperature、Waterproof Rating and Other Data，Only Represents XunPuInternal Test Results，For Detailed Test Methods，Please Contact XunPuSales Representative。

Product Part Number List

Product Image Part Number Product Description Product Documentation Production Status PINNumber Card insertion detection Locating Pin Delivery Cycle Product Gross Weight MPQ MOQ Remarks Actions
SMC-204-ARP6 SMC-204-ARP6

View Drawings

3DDownload

 		In Production 6PIN Without None 3-7Day 0.61Gram(g) 1500/plate No Restriction Contact Customer Service
