TYPEC-324G

REACH RoHS ELV

Product Type 24PIN(Full-Featured Version)

Connector Type Female Connector

Product Form Horizontal

Installation Method SMD Type

Waterproof Rating Non-waterproof

Rated Current 5A

Mating Cycles 10,000Cycles

Basic Parameters

Product Type Type-C Female Connector

PINNumber 24PIN

Number of Rows Double Row

Core color Black

Product Form Horizontal SMD

Height Above Board 3.16mm

Angle 90°

Temperature resistance 260℃

Package SMD

Packaging Method Tape and Reel

Mechanical Properties

Durability 10,000Cycles

Withdrawal force 8-20N

Insertion force 5-20N

Electrical Characteristics

Withstand Voltage 100V AC

Insulation Resistance 100mΩ Min

Contact Resistance 40mΩ Max

Rated Current 5A Max

Rated Voltage 20V Max

Declaration:About Product Specifications、Parameter、Life、Operating Temperature、Waterproof Rating and Other Data，Only Represents XunPuInternal Test Results，For Detailed Test Methods，Please Contact XunPuSales Representative。

Product Part Number List

Part Number	Product Documentation	Production Status	Delivery Cycle	Product Gross Weight	MPQ	MOQ	Actions
TYPEC-324G-ACP24	View Drawings 3DDownload	In Production	3~7Day	0.736Gram(g)	900/Disc	No Restriction	Contact Customer Service
TYPEC-324G-ECP24	View Drawings 3DDownload	In Production	3~7Day	0.736Gram(g)	900/Disc	No Restriction	Contact Customer Service
TYPEC-324G-BCP24	View Drawings 3DDownload	In Production	3~7Day	0.897Gram(g)	1000/Disc	No Restriction	Contact Customer Service

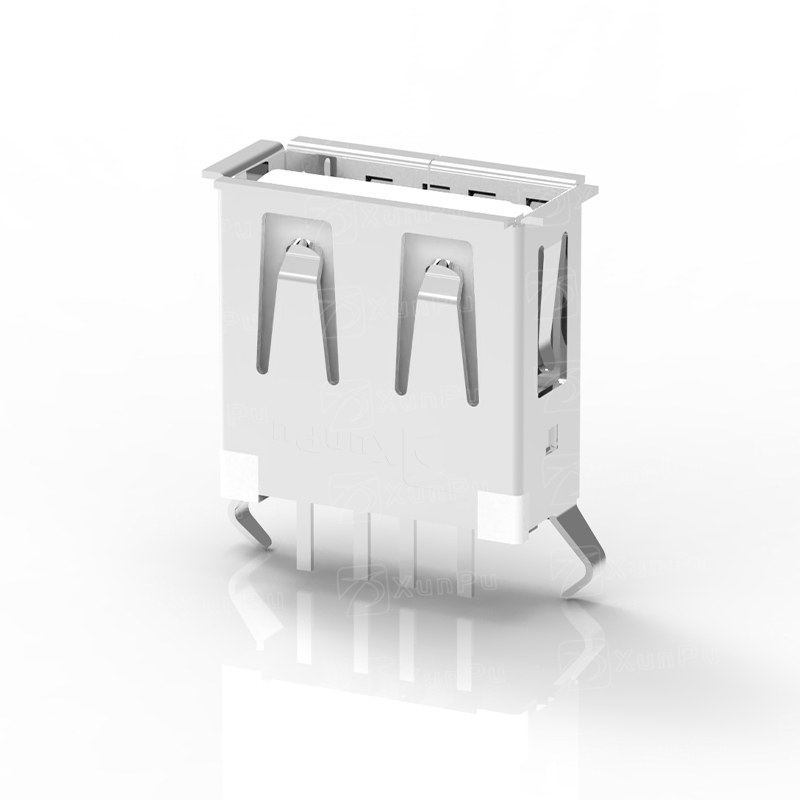

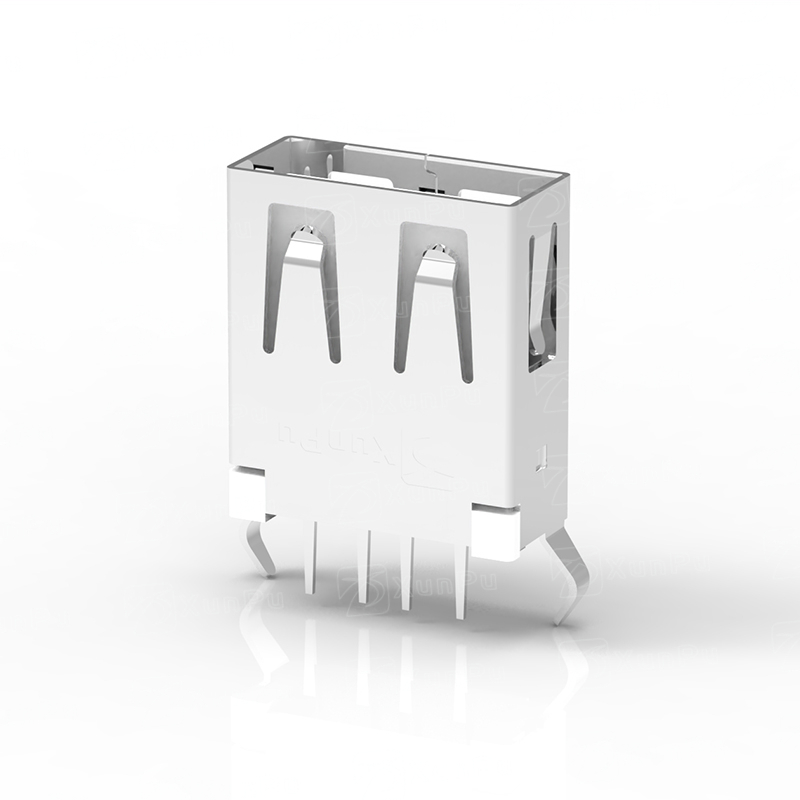

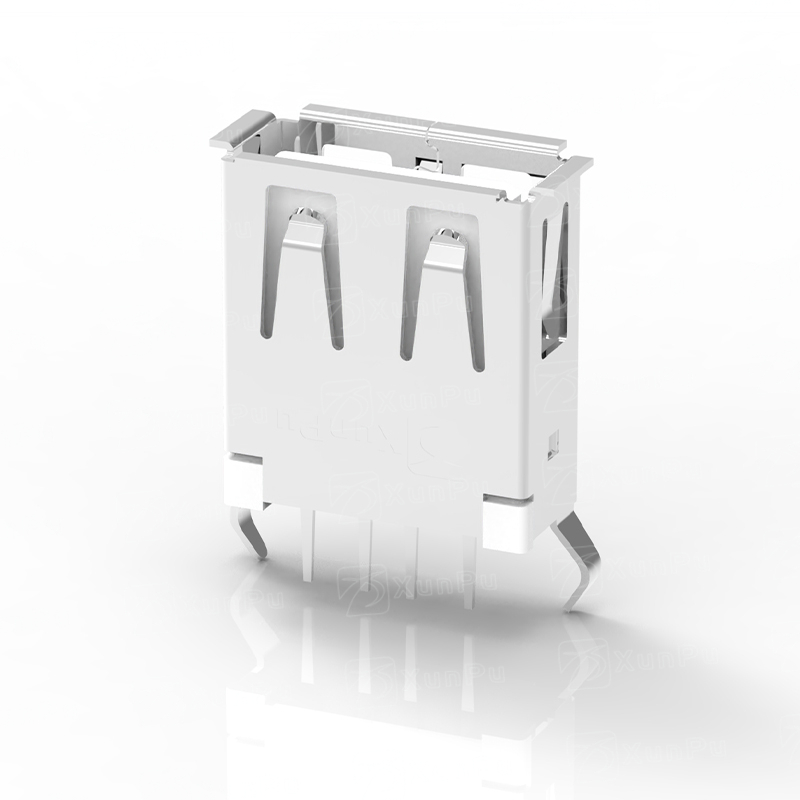

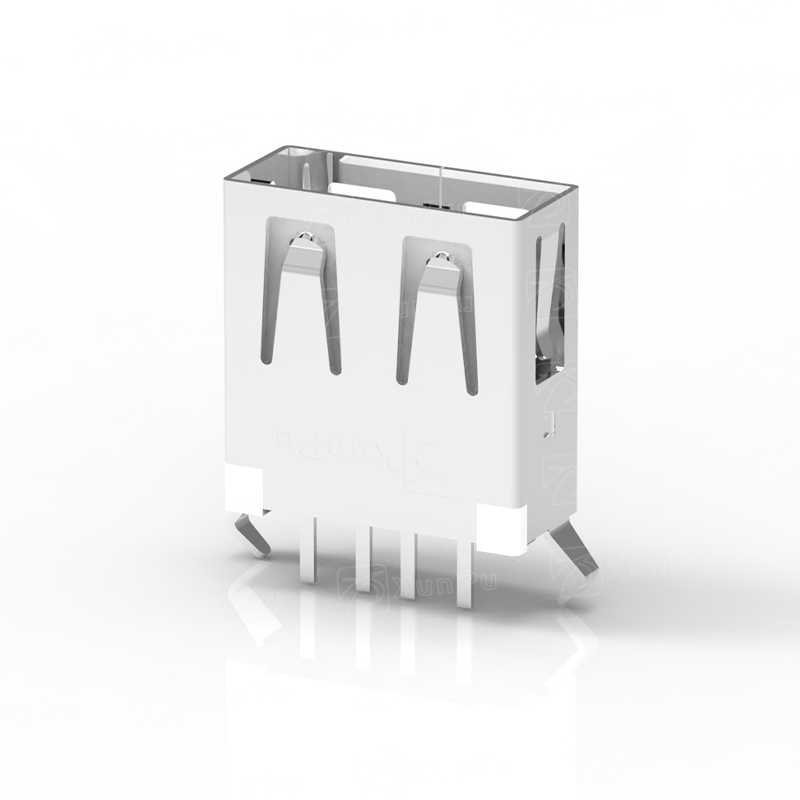

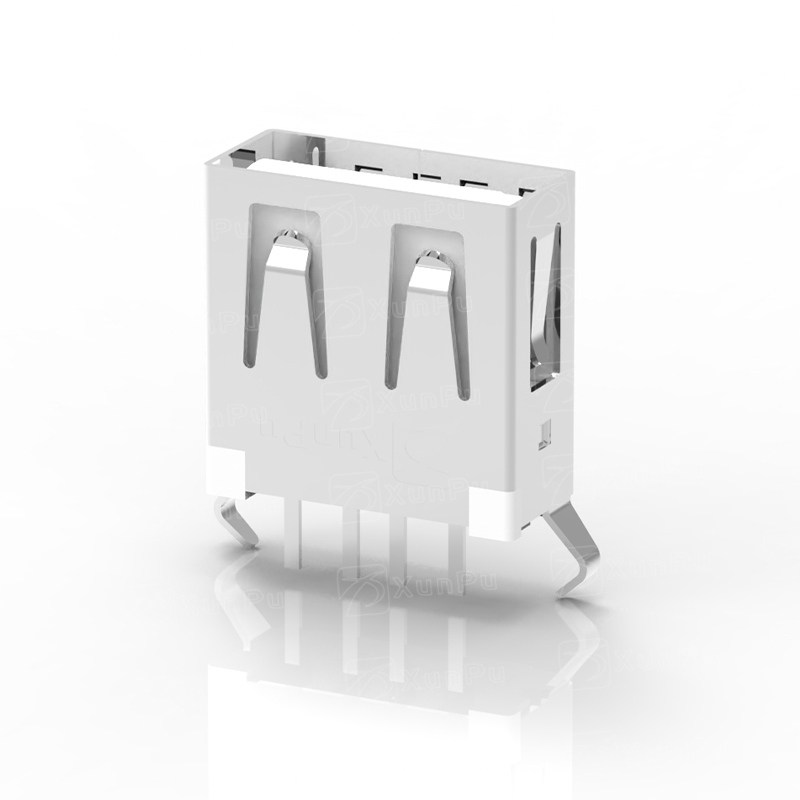

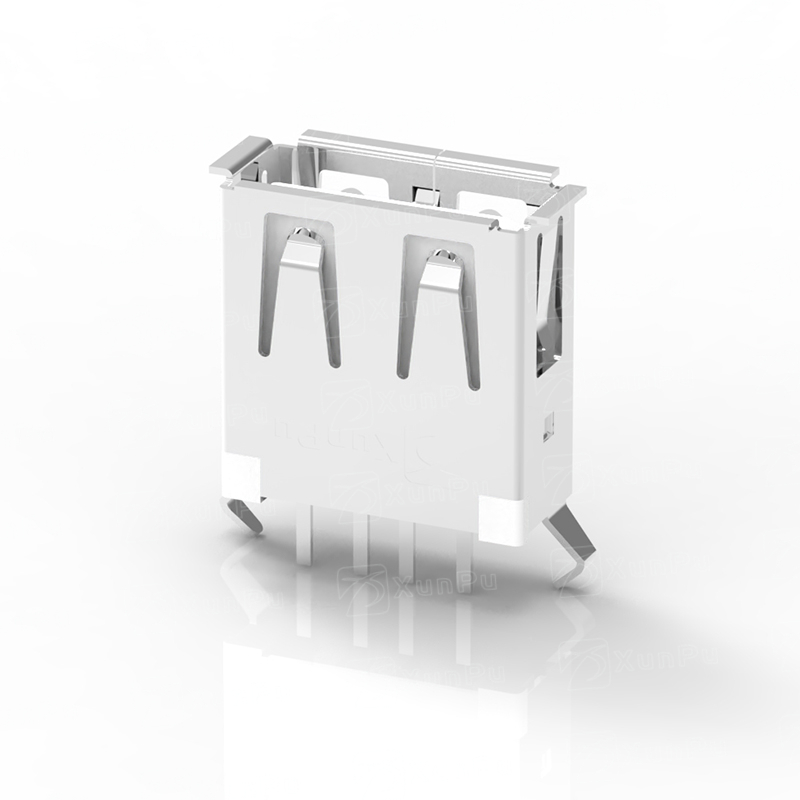

Related Products
