DS-N-B-T

DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T
DS-N-B-T

DS-N-B-T

REACH RoHS ELV
Operation Mode Vertical Press
Installation Method Plug-in Type
Product Spacing 2.54mm
Shell Color Blue
Push Button Specification High Push

Basic Parameters

Product Spacing 2.54mm
Operation Mode Positive operation
Temperature resistance 260℃
Package DIP
Packaging Method Tube Packaging

Mechanical Properties

Operating force 1000gf Max.
Durability 3,000cycles

Electrical Characteristics

Withstand Voltage 500V AC for 1 min.
Insulation Resistance 100MΩ min.
Contact Resistance 260℃
Rated Current 25mA
Rated Voltage 24VDC
Declaration:About Product Specifications、Parameter、Life、Operating Temperature、Waterproof Rating and Other Data，Only Represents XunPuInternal Test Results，For Detailed Test Methods，Please Contact XunPuSales Representative。

Product Part Number List

Product Image Part Number Product Description Product Documentation Production Status Delivery Cycle Product Gross Weight MPQ MOQ Remarks Actions

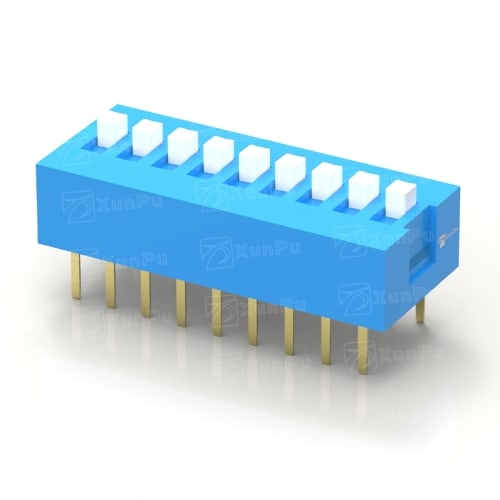

DS-1-B-T DS-1-B-T

View Drawings

3DDownload

 		In Production 3-7Day 121/Tube No Restriction Contact Customer Service

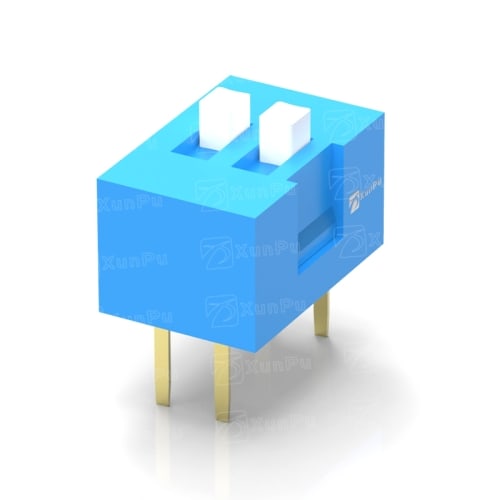

DS-2-B-T DS-2-B-T

View Drawings

3DDownload

 		In Production 3-7Day 74/Tube No Restriction Contact Customer Service

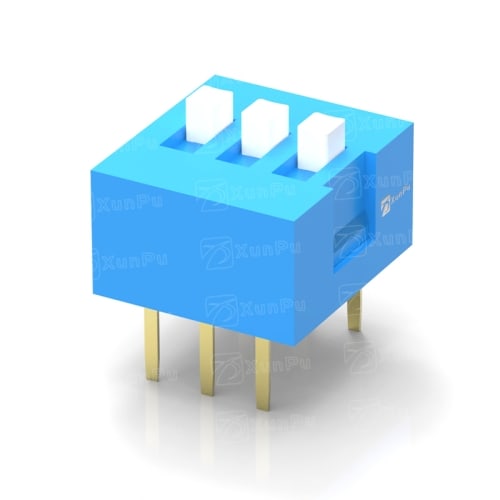

DS-3-B-T DS-3-B-T

View Drawings

3DDownload

 		In Production 3-7Day 53/Tube No Restriction Contact Customer Service

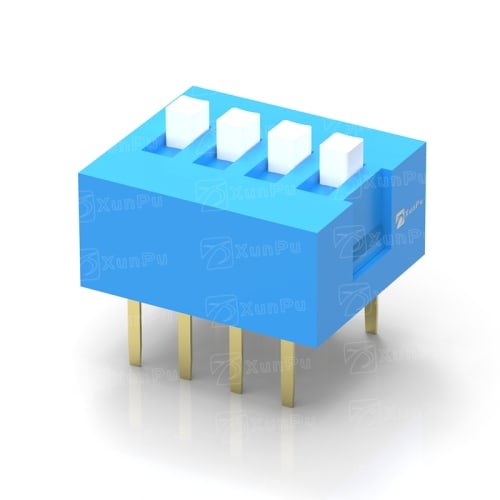

DS-4-B-T DS-4-B-T

View Drawings

3DDownload

 		In Production 3-7Day 42/Tube No Restriction Contact Customer Service

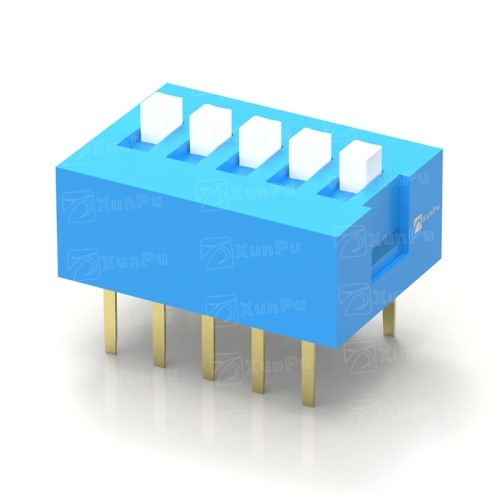

DS-5-B-T DS-5-B-T

View Drawings

3DDownload

 		In Production 3-7Day 34/Tube No Restriction Contact Customer Service

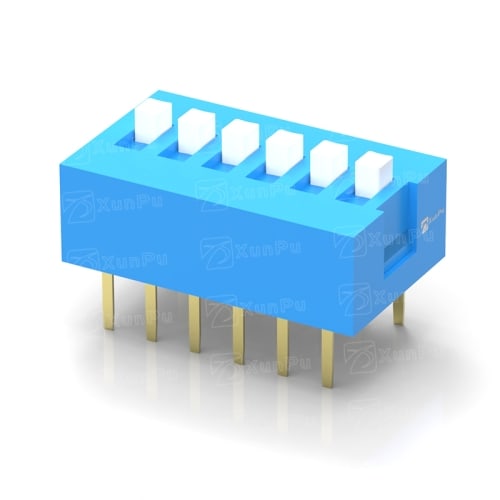

DS-6-B-T DS-6-B-T

View Drawings

3DDownload

 		In Production 3-7Day 29/Tube No Restriction Contact Customer Service

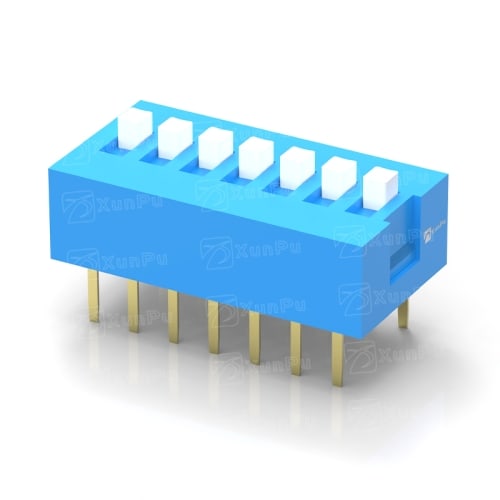

DS-7-B-T DS-7-B-T

View Drawings

3DDownload

 		In Production 3-7Day 25/Tube No Restriction Contact Customer Service

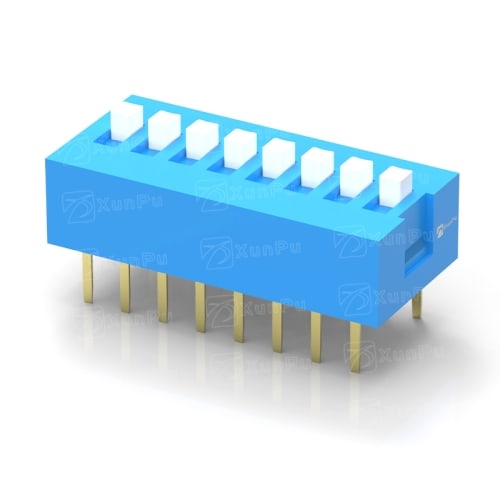

DS-8-B-T DS-8-B-T

View Drawings

3DDownload

 		In Production 3-7Day 22/Tube No Restriction Contact Customer Service
DS-9-B-T DS-9-B-T

View Drawings

3DDownload

 		In Production 3-7Day 20/Tube No Restriction Contact Customer Service

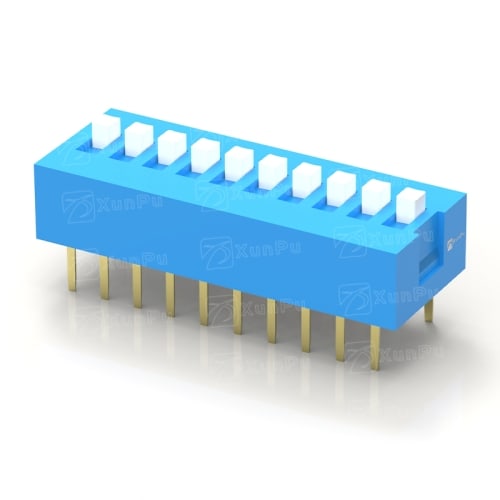

DS-10-B-T DS-10-B-T

View Drawings

3DDownload

 		In Production 3-7Day 18/Tube No Restriction Contact Customer Service

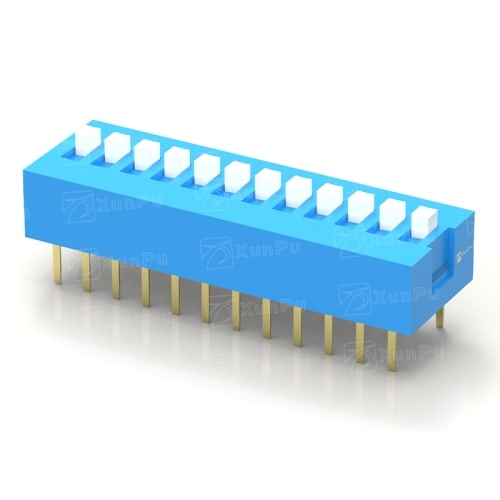

DS-12-B-T DS-12-B-T

View Drawings

3DDownload

 		In Production 3-7Day 15/Tube No Restriction Contact Customer Service

Related Products

Product Parameter Information

Basic Parameters

Product Spacing2.54mm
Operation ModePositive operation
Temperature resistance260℃
PackageDIP
Packaging MethodTube Packaging

Mechanical Properties

Operating force1000gf Max.
Durability3,000cycles

Electrical Characteristics

Withstand Voltage500V AC for 1 min.
Insulation Resistance100MΩ min.
Contact Resistance260℃
Rated Current25mA
Rated Voltage24VDC
