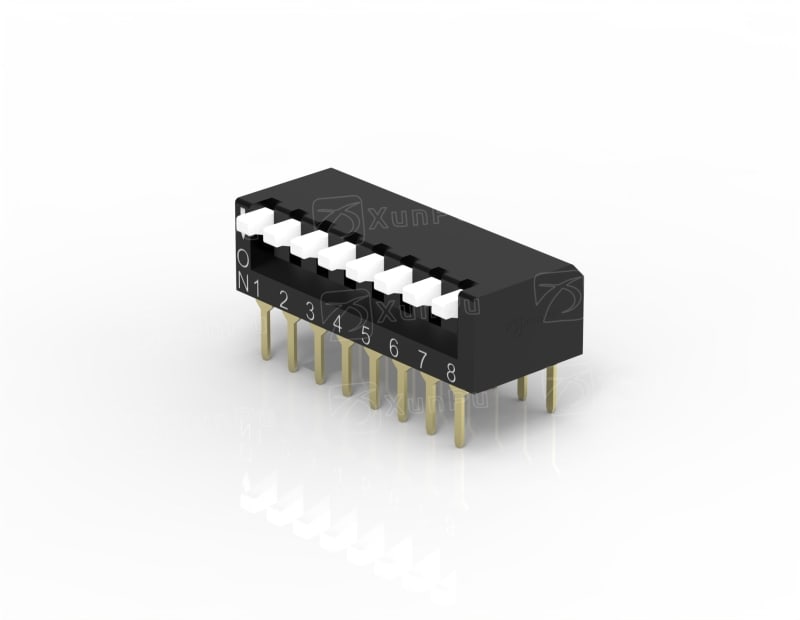

DSPV-N-LD-GET

REACH RoHS ELV

Operation Mode Side Press

Installation Method Plug-in Type

Product Spacing 2.54mm

Shell Color Black

Push Button Specification High Push

Basic Parameters

Product Spacing 2.54mm

Operation Mode Side Operation

Temperature resistance 260℃

Package DIP

Packaging Method Tube Packaging

Mechanical Properties

Operating force 1000gf Max.

Durability 3,000cycles

Electrical Characteristics

Withstand Voltage 500V AC for 1 min.

Insulation Resistance 100MΩ min.

Contact Resistance 100mΩ max.

Rated Current 25mA

Rated Voltage 24VDC

Declaration:About Product Specifications、Parameter、Life、Operating Temperature、Waterproof Rating and Other Data，Only Represents XunPuInternal Test Results，For Detailed Test Methods，Please Contact XunPuSales Representative。

Product Part Number List

Part Number	Product Documentation	Production Status	Delivery Cycle	MPQ	MOQ	Actions

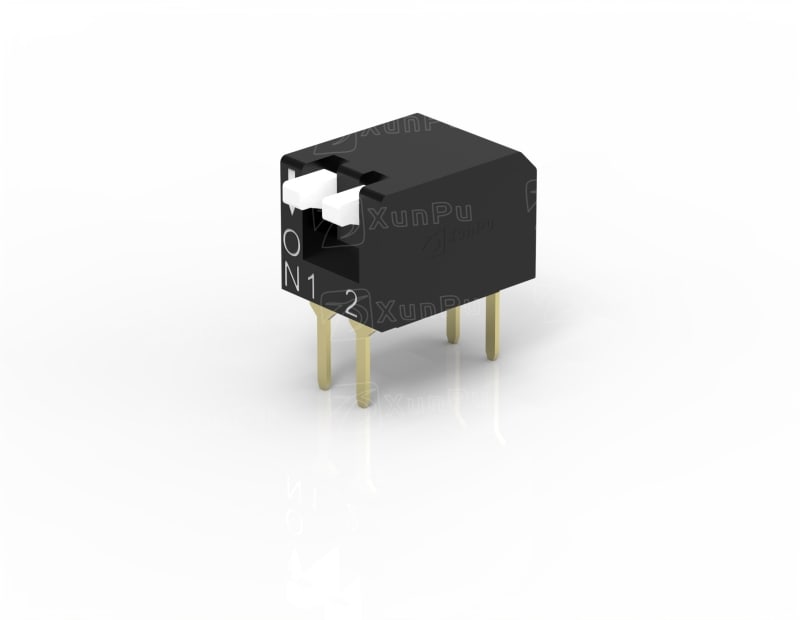

DSPV-02-LD-GET	View Drawings 3DDownload	In Production	3-7Day	79/Tube	No Restriction	Contact Customer Service

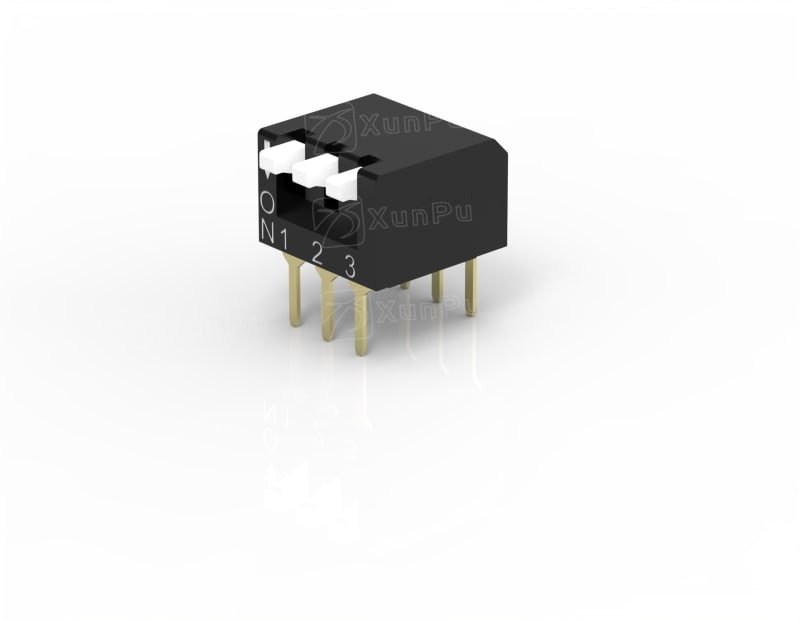

DSPV-03-LD-GET	View Drawings 3DDownload	In Production	3-7Day	57/Tube	No Restriction	Contact Customer Service

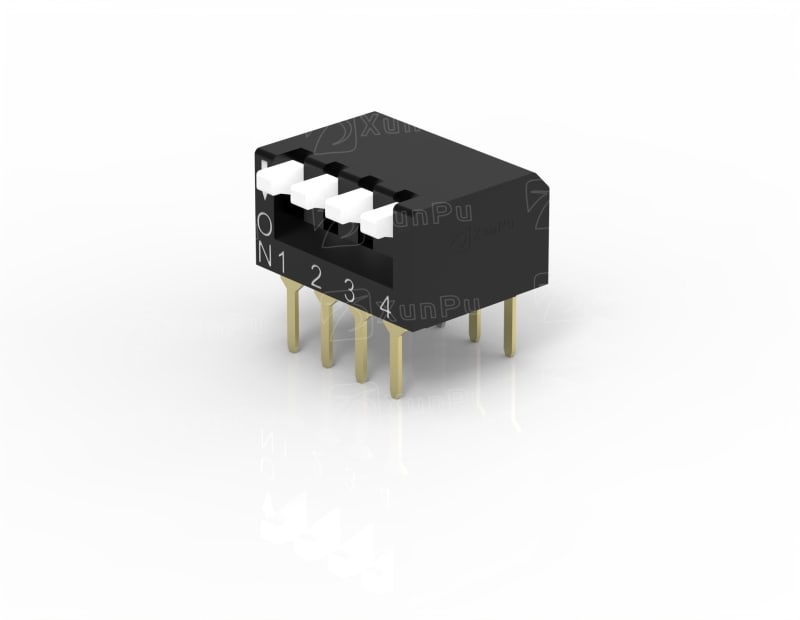

DSPV-04-LD-GET	View Drawings 3DDownload	In Production	3-7Day	44/Tube	No Restriction	Contact Customer Service

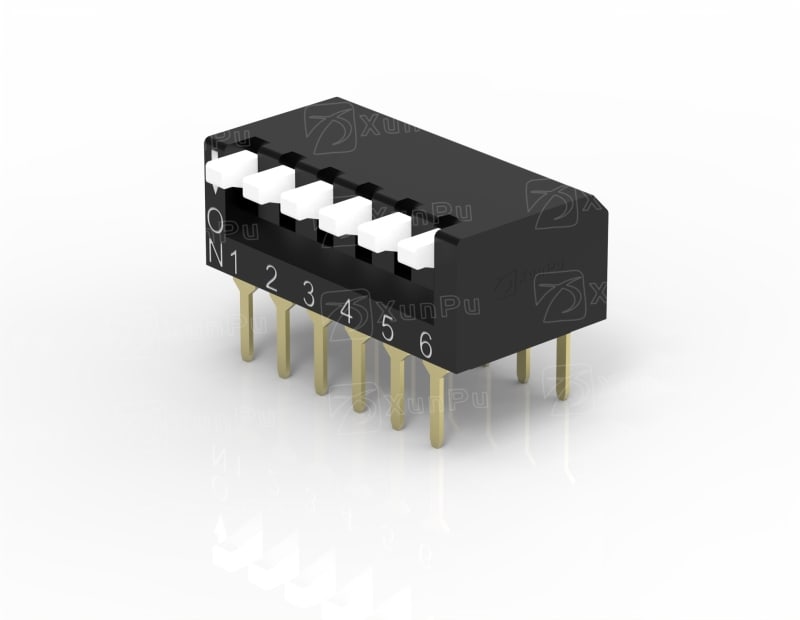

DSPV-06-LD-GET	View Drawings 3DDownload	In Production	3-7Day	30/Tube	No Restriction	Contact Customer Service

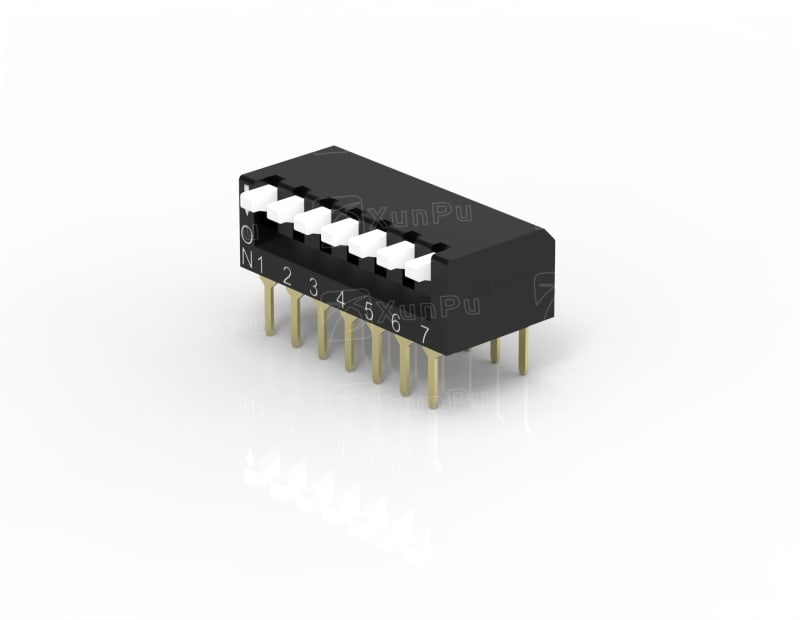

DSPV-07-LD-GET	View Drawings 3DDownload	In Production	3-7Day	26/Tube	No Restriction	Contact Customer Service
DSPV-08-LD-GET	View Drawings 3DDownload	In Production	3-7Day	23/Tube	No Restriction	Contact Customer Service
