IDC2.0-01-NPZS

REACH RoHS ELV

Product Type 1 IDC Header

Product Spacing 2.0mm

Installation Method Through-Hole Type

Single/Double Row Double Row

Basic Parameters

Product type IDC Header

Pitch 2.0mm

Installation Method Plugin

Number of rows Double Row

Mechanical Performance

Electrical Characteristics

Rated Current 1.5A mps

Pressure Resistance AC 500V

Insulation Resistance 1000MΩ Min

Contact Resistance 20MΩ Max

Operating Temperature -40°C to +105°c

Standard Material PA6T

Declaration:Product Specifications、Parameters、Lifespan、Operating Temperature、Waterproof Rating Data，Represents XunPu OnlyInternal Test Results，For Detailed Testing Methods，Please Contact XunPuSales Staff。

Product Part Number List

Part Number	Product information	Production Status	Shipping Lead Time	MOQ	Operation
IDC2.0-01-10PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

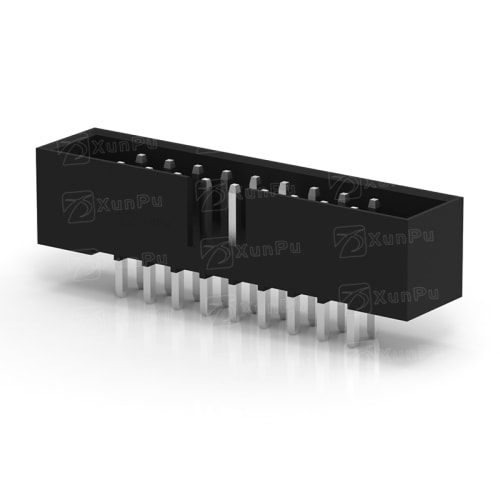

IDC2.0-01-09PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

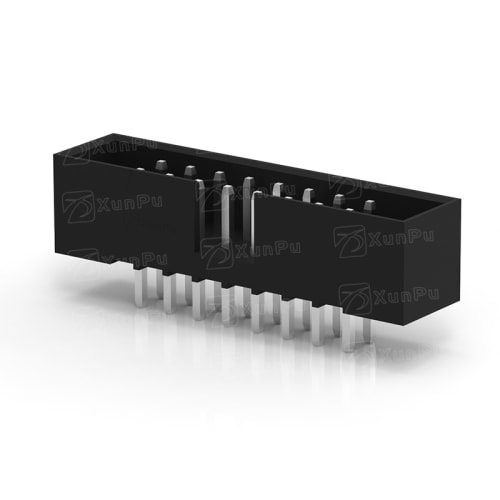

IDC2.0-01-08PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

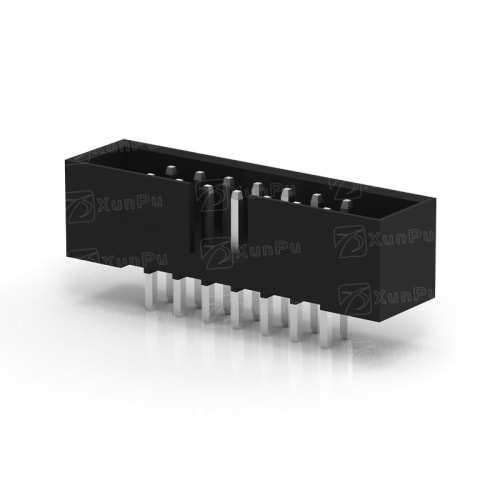

IDC2.0-01-07PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service
IDC2.0-01-06PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

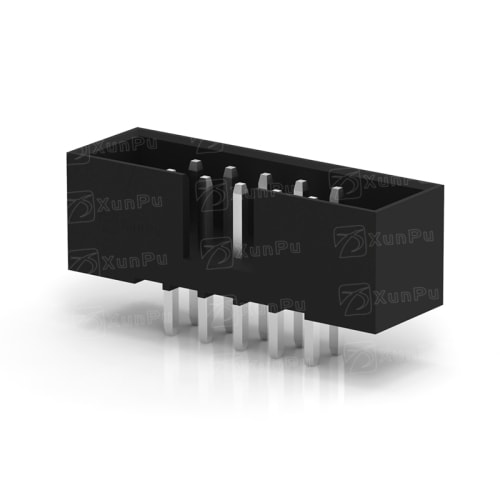

IDC2.0-01-05PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

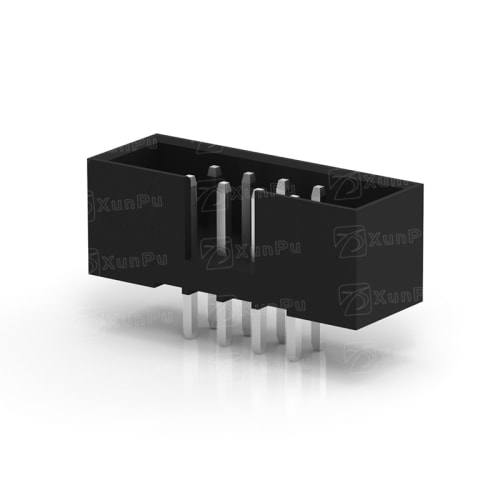

IDC2.0-01-04PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service

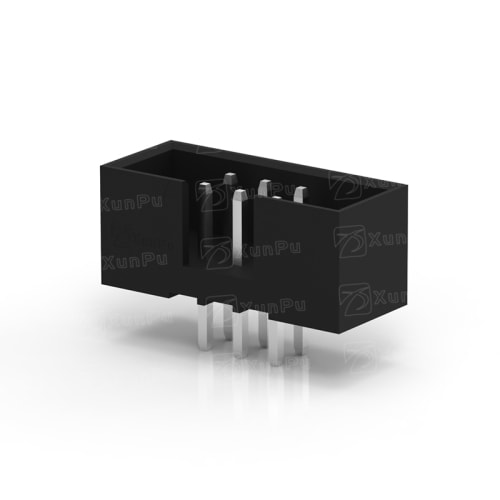

IDC2.0-01-03PZS	View drawings 3DDownload	In Production	15-25Day	No Restriction	Contact Customer Service
