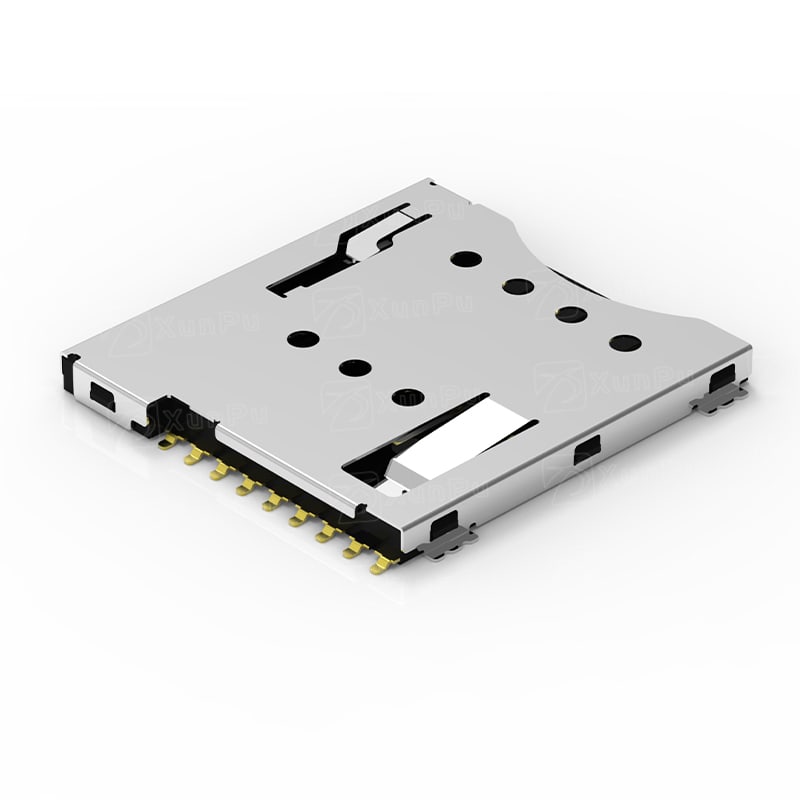

SMN-304

SMN-304

SMN-304

REACH RoHS ELV
Card installation method Plug-in type
Card insertion detection Without detection pin
Product Type NANO SIM

Basic Parameters

Snap Gauge NANO SIM
Height Above Board 1.35mm
Card installation method PUSH PULL Plug-in type
Locating Pin Yes
Foolproof Foolproof
Anti-Buckling Not Anti-Buckling
Hot Swap Unsupported
Temperature resistance 260℃
Package SMD
Packaging Method Tape and Reel

Mechanical Properties

Durability 5,000Cycle

Electrical Characteristics

Withstand Voltage 500V AC
Insulation Resistance 1000MΩ Min
Contact Resistance 100mΩ Max
Rated Current 0.5A
Rated Voltage 50V
Declaration:About Product Specifications、Parameter、Life、Operating Temperature、Waterproof Rating and Other Data，Only Represents XunPuInternal Test Results，For Detailed Test Methods，Please Contact XunPuSales Representative。

Product Part Number List

Product Image Part Number Product Description Product Documentation Production Status PINNumber Card insertion detection Locating Pin Delivery Cycle Product Gross Weight MPQ MOQ Remarks Actions
SMN-304-ACP6 SMN-304-ACP6

View Drawings

3DDownload

 		In Production 6PIN Without detection Yes 1~3Day 0.508Gram(g) 1800pcs/Disc No Restriction Contact Customer Service
SMN-304-ARP6 SMN-304-ARP6

View Drawings

3DDownload

 		In Production 6PIN Without detection None 3~7Day 1800pcs/Disc No Restriction Contact Customer Service
